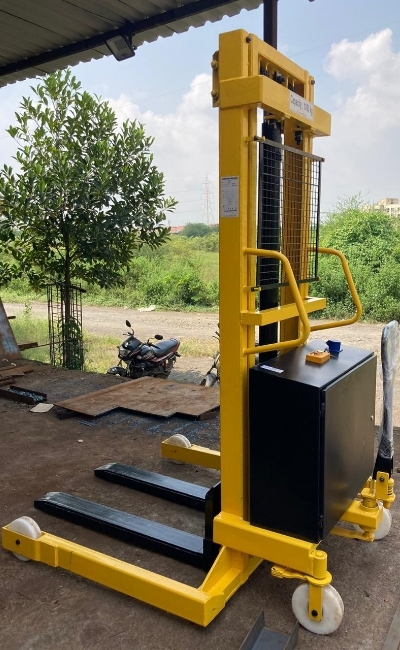

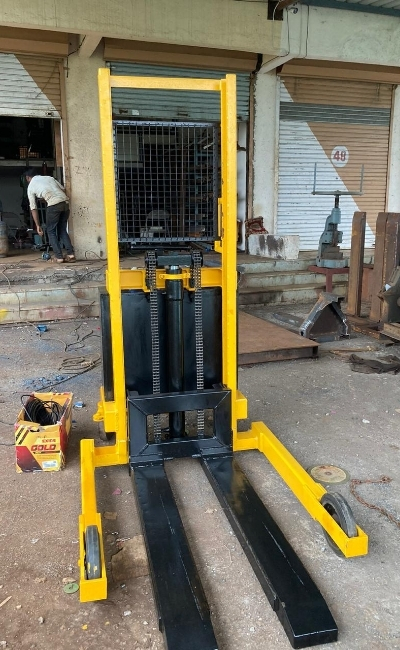

Wide Leg Straddle Stacker
Versatile | Stable | High-Performance Material Handling Solution
At Globe MachMovers, we specialize in providing robust and reliable Wide Leg Straddle Stackers designed for efficient and safe material handling across diverse industrial environments. As a leading wide leg straddle stacker manufacturer in India, our stackers are built to handle larger and non-standard pallets with superior stability and maneuverability.
What is a Wide Leg Straddle Stacker?
Our Wide Leg Straddle Stackers are ideal for applications that require handling of various pallet sizes without interference from base legs. The straddle legs are adjustable to accommodate wider loads, making them a perfect fit for manufacturing units, warehouses, and distribution centers.
Technical Specifications
| Product Type | Wide Leg Straddle Electric / Semi-Electric Stacker |
|---|
| Lifting Capacity | 1000 kg / 1500 kg / 2000 kg |
|---|
| Lifting Height (Max.) | 1600 mm / 2500 mm / 3000 mm / 3500 mm / 4500 mm |
|---|
| Lowered Fork Height | 85 mm to 100 mm |
|---|
| Fork Length | 1000 mm / 1150 mm |
|---|
| Adjustable Fork Width | 300 mm to 850 mm |
|---|
| Straddle Leg Inner Width | 900 mm to 1300 mm (adjustable) |
|---|
| Straddle Leg Outer Width | 1100 mm to 1500 mm |
|---|
| Leg Height from Ground | 100 mm to 150 mm |
|---|
| Mast Type | Single / Duplex / Triplex |
|---|
| Closed Mast Height | Varies based on lift height (e.g. ~1980 mm for 1600 mm lift) |
|---|
| Lift Motor Power | 1.5 kW to 2.2 kW |
|---|
| Travel Motor Power (if powered) | 0.75 kW to 1.2 kW |
|---|
| Battery Voltage | 24V DC |
|---|
| Battery Capacity | 120 Ah to 280 Ah (Lead Acid / Li-ion) |
|---|
| Charger | Inbuilt / External, 24V Automatic |
|---|
| Lifting Speed (Laden/Unladen) | 80 – 120 mm/sec |
|---|
| Lowering Speed | Controlled, Safe Descent |
|---|
| Travel Speed (Laden/Unladen) | 3 – 5 km/h (for fully electric) |
|---|
| Turning Radius | ~1350 mm (varies by design) |
|---|
| Wheel Material | PU / Nylon |
|---|
| Brake System | Electromagnetic / Manual |
|---|
| Control Mode | Push Button / Lever / Remote |
|---|
| Surface Finish | Powder Coated / Industrial Paint Finish |
|---|
| Safety Features | - Emergency Stop
- Battery Indicator
- Horn
- Protective Mesh |
|---|
| Usage/Application | Handling Closed Pallets, Narrow Aisles, Ground-Level Pallet Pickups |
|---|
Key Features
- Load capacity up to 2000 kg
- Lifting height up to 5000 mm
- Adjustable wide straddle legs for diverse pallet sizes
- Heavy-duty mast and reinforced chassis
- Energy-efficient electric or semi-electric operation
- Ergonomic tiller handle with multifunctional controls
- Easy maintenance and durable design
Applications
- Handling irregular or oversized pallets
- Operations in narrow aisles or confined spaces
- Safe stacking in multi-level racking systems
- Material handling near machinery or conveyors
- Warehouses, production lines, logistics centers
Industries We Serve
- Automotive & Engineering
- FMCG & Packaging
- Warehousing & Logistics
- Electronics & Consumer Goods
- Food & Beverage
- Retail & Distribution
Eco-Friendly Performance
Our wide leg straddle stackers are designed to minimize energy consumption and noise while improving operator safety. Their zero-emission electric operation supports green warehouse initiatives and contributes to a cleaner, safer work environment.
Why Choose Wide Leg Straddle Stackers from Globe MachMovers?
- Custom Solutions: Tailored to fit various warehouse and load handling needs
- Enhanced Stability: Designed for safer handling of wider and heavier loads
- Quality Assured: Built with high-grade components for long service life
- After-Sales Support: Nationwide servicing and prompt spare parts availability
- Trusted Manufacturer: Recognized among top material handling equipment manufacturers in India
Request Your Quote Today
Need to move wide or irregular loads efficiently?
Get in touch with Globe MachMovers — your trusted partner in wide leg straddle stackers and material handling equipment.
Let us help you lift your productivity!
