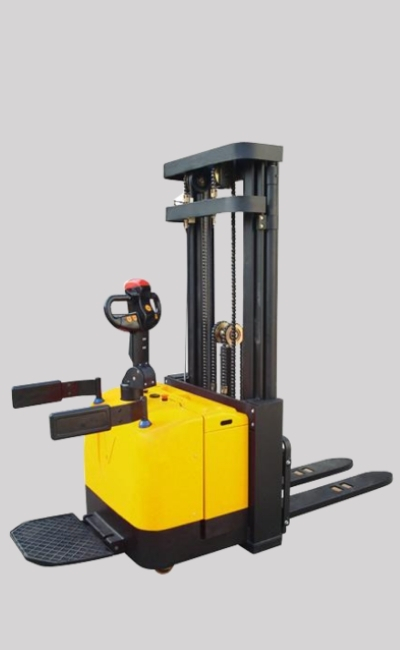

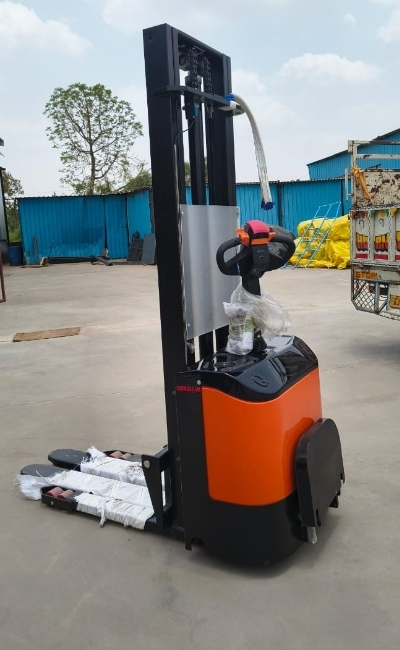

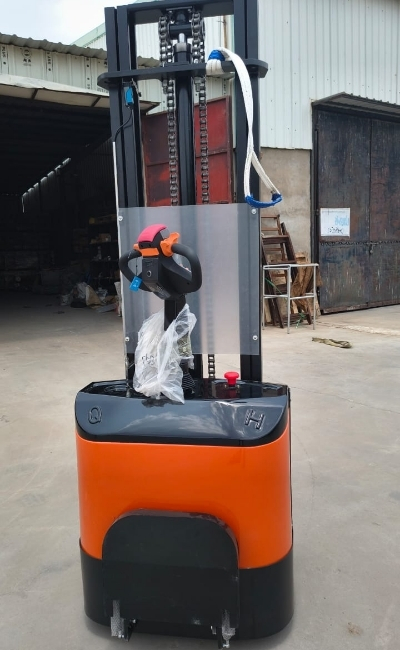

Fully Electric Stacker
Powerful Performance | Precision Control | Zero Manual Effort
Globe MachMovers is a trusted name among Fully Electric Stacker manufacturers in India, offering advanced material handling solutions that deliver seamless lifting and transportation of palletized goods. Designed for high efficiency, low maintenance, and safe operation, our Fully Electric Stackers are ideal for modern warehouses, distribution centers, and manufacturing units.
What is a Fully Electric Stacker?
The Fully Electric Stacker is powered by a battery-operated system that controls both lifting and propulsion, eliminating the need for manual effort. Built for long operational hours and heavy-duty performance, it ensures smoother load handling, increased productivity, and reduced operator fatigue. Its compact design and high maneuverability make it perfect for narrow aisles and confined spaces.
Technical Specifications
| Product Type | Fully Electric Pallet Stacker |
|---|
| Operation Mode | Electric Drive + Electric Lift |
|---|
| Lifting Capacity | 1000 kg / 1500 kg / 2000 kg |
|---|
| Lifting Height (Max.) | 1600 mm / 2500 mm / 3000 mm / 3500 mm / 4500 mm |
|---|
| Lowered Fork Height | 85 mm to 100 mm |
|---|
| Fork Length | 1000 mm / 1150 mm |
|---|
| Fork Width (Adjustable) | 300 mm to 850 mm |
|---|
| Mast Type | Single / Duplex / Triplex |
|---|
| Closed Mast Height | 1980 mm to 2200 mm (depending on lift height) |
|---|
| Drive Motor Power | 0.75 kW to 1.5 kW |
|---|
| Lift Motor Power | 1.5 kW to 2.2 kW |
|---|
| Battery Voltage | 24V DC |
|---|
| Battery Capacity | 120 Ah to 280 Ah (Lead Acid / Lithium-Ion) |
|---|
| Charger | In-built / External Automatic Charger (24V/30A or as per model) |
|---|
| Travel Speed (Laden/Unladen) | 4 – 6 km/h |
|---|
| Lifting Speed (Laden/Unladen) | 80 – 120 mm/sec |
|---|
| Lowering Speed | Smooth and controlled |
|---|
| Turning Radius | Approx. 1350 mm (varies with model) |
|---|
| Gradeability (Laden/Unladen) | 6% / 10% |
|---|
| Wheel Type | Polyurethane / Nylon |
|---|
| Brake System | Electromagnetic Brake |
|---|
| Control Handle | Multi-Function Tiller Arm with Safety and Direction Controls |
|---|
| Display Features | Battery Level Indicator, Hour Meter, Fault Code Display |
|---|
| Safety Features | - Emergency Stop
- Belly Switch
- Horn
- Anti-Roll Back System |
|---|
| Surface Finish | Powder Coated / Painted |
|---|
| Usage/Application | Pallet Stacking, Warehouse Storage, Dock Handling, Material Transport |
|---|
Key Features
- Load capacity: 1000 kg to 2000 kg
- Lifting height: Up to 5500 mm
- Electric-powered lift and drive functions
- Intelligent control system with multifunctional tiller
- High-capacity maintenance-free battery
- Smooth, noiseless operation with regenerative braking
- Safety features: Emergency stop, anti-roll-back system, overload protection
Applications
- Pallet stacking in high-rack storage
- Loading and unloading in warehouses
- Order picking and goods movement
- In-house transportation across production floors
- Compact storage systems in retail distribution centers
Industries We Serve
- Warehousing & Logistics
- Retail & E-commerce
- FMCG & Packaging
- Pharmaceuticals & Healthcare
- Automotive & Engineering
- Electronics & Appliances
Eco-Friendly & Energy Efficient
Our Fully Electric Stackers produce zero emissions, operate silently, and consume less energy. They are the perfect alternative to internal combustion and manual handling equipment for businesses looking to reduce their environmental impact and boost operational safety.
Why Choose Fully Electric Stackers from Globe MachMovers?
- 100% Electric Operation: No manual effort, maximum efficiency
- Enhanced Safety & Ergonomics: Operator-friendly design with superior visibility
- High Productivity: Suitable for continuous use in demanding environments
- Durability Guaranteed: Built with high-grade steel and precision components
- Pan-India Network: Nationwide delivery, service support, and spare parts availability
Upgrade to an Effortless Lifting Experience Today
Get in touch with Globe MachMovers – your reliable Fully Electric Stacker manufacturer and supplier in India.
Enhance material handling with smart, efficient, and operator-friendly equipment.
