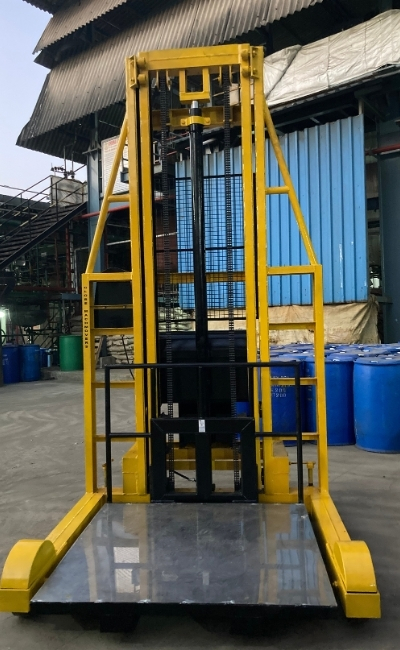

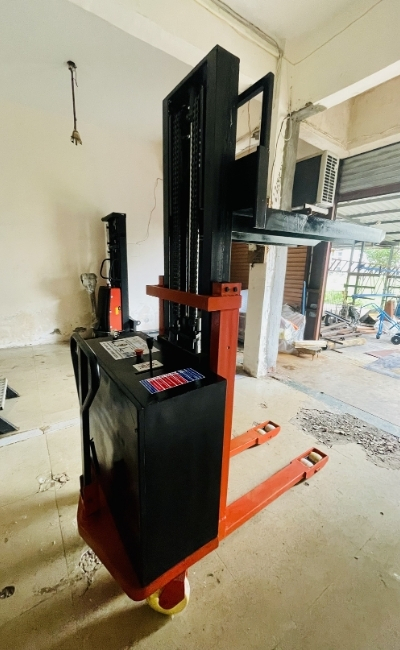

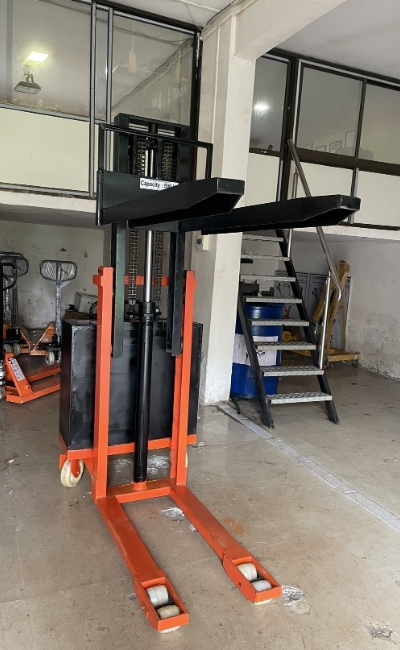

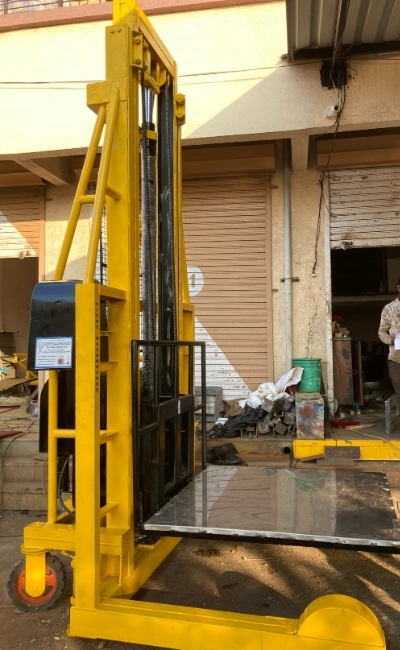

Semi Electric Flame Proof Stacker
Safe Operation | Explosion-Proof Design | Efficient Material Handling
Globe MachMovers is a reputed Semi Electric Flame Proof Stacker manufacturer in India, offering high-quality and safe solutions for hazardous and explosive work environments. Our flameproof stackers are specially engineered to handle materials in industries where fire, explosion, or ignition risks are present—ensuring smooth operation without compromising safety.
What is a Semi Electric Flame Proof Stacker?
The Semi Electric Flame Proof Stacker is designed for controlled material lifting with a motorized lift system and manual push-pull movement. Equipped with flameproof electrical components, it is ideal for use in chemical plants, oil & gas facilities, paint industries, and environments classified as hazardous (Zone 1 & Zone 2 areas).
Technical Specifications
| Product Type | Semi Electric Flame Proof Stacker |
|---|
| Lifting Capacity | 1000 kg / 1500 kg / 2000 kg |
|---|
| Lifting Height (Max.) | 1600 mm / 2500 mm / 3000 mm / 3500 mm / 4500 mm |
|---|
| Lowered Fork Height | 85 mm to 100 mm |
|---|
| Fork Length | 1000 mm / 1150 mm |
|---|
| Fork Width (Adjustable) | 300 mm to 850 mm |
|---|
| Mast Type | Single / Duplex / Triplex (as per requirement) |
|---|
| Drive Type | Manual Push / Electric Lift |
|---|
| Lift Motor Power | 1.5 kW to 2.2 kW (Flameproof Motor) |
|---|
| Power Supply | 24V DC Battery Operated (Flameproof Components) |
|---|
| Battery Capacity | 100 Ah to 210 Ah (Flameproof Battery Box Enclosure) |
|---|
| Charger Type | Flameproof External Charger (24V Automatic) |
|---|
| Lifting Speed (Laden/Unladen) | 80 – 120 mm/sec |
|---|
| Wheel Type | Antistatic PU / Nylon Wheels |
|---|
| Brake System | Manual Brake / Electromagnetic Brake (Explosion-Proof Rated) |
|---|
| Turning Radius | Approx. 1400 mm (model dependent) |
|---|
| Control Type | Flameproof Push Button / Lever Control |
|---|
| Surface Finish | Flameproof Paint / Powder Coated |
|---|
| Zone Classification | Suitable for Zone 1 & Zone 2 (Gas Groups IIA & IIB) |
|---|
| Flameproof Standards | Compliant with ATEX / IECEx / CMRI Certifications (subject to model) |
|---|
| Safety Features | - Emergency Stop (Flameproof)
- Overload Protection
- Battery Indicator |
|---|
| Usage/Application | Explosive or Flammable Environments – Paint Shops, Refineries, Pharma, Chemical Units |
|---|
Key Features
- Load capacity: Up to 2000 kg
- Lifting height: Up to 3500 mm or customized
- Flameproof motor and electrical components (ATEX/CMRI certified)
- Battery-powered lifting and manual movement
- Anti-spark construction for added safety
- Rugged steel frame and mast for durability
- Ergonomic handle with emergency stops function
Applications
- Handling drums, pallets, and containers in hazardous zones
- Safe material lifting in flammable and explosive environments
- Movement of solvents, chemicals, and volatile materials
- Operations inside chemical warehouses and refineries
- Paint and coatings industry handling
Industries We Serve
- Oil & Gas
- Petrochemicals & Refineries
- Paint & Varnish Industry
- Chemical Manufacturing
- Explosives & Fireworks
- Pharmaceuticals (flammable storage areas)
Benefits of Globe MachMovers’ Flame Proof Stackers
- Certified safety in hazardous work zones
- Flameproof control systems ensure risk-free operation
- Improved efficiency in handling explosive materials
- Battery operation with overload protection
- Long-lasting components with minimal maintenance
- Built to meet international compliance standards
Why Choose Globe MachMovers?
- Certified Safety: Flameproof and explosion-proof certified components
- Reliable Performance: Battery-operated lifting system for smooth and safe operations
- Custom Engineering: Built to suit your site-specific safety requirements
- Trusted Manufacturer: Years of experience in hazardous material handling solutions
- Pan-India Delivery & Service: Quick support and spare parts availability across India
Request Your Quote Today
Working in a hazardous zone? Stay safe with our certified flameproof solutions.
Contact Globe MachMovers – your trusted flameproof stacker manufacturer in India for reliable, explosion-safe lifting equipment.
