Traction Counterweight Goods Lift
The Globe Mach Movers Traction Counterweight Goods Lift is engineered for high-performance material transportation in industrial, commercial, and warehouse environments. Designed with a counterweight-based traction system, these lifts ensure smooth operation, reduced power consumption, and enhanced load-handling capacity, making them ideal for facilities with frequent and heavy lifting requirements.
Product Overview
Operating on the principle of mechanical traction, the lift uses a counterweight balance system to minimize energy usage while providing seamless vertical travel. This mechanism not only improves efficiency but also ensures long-term operational reliability with lower running costs. With robust construction and customizable configurations, it is perfectly suited for multi-storey material handling applications.
Technical Specifications:
| Parameter | Specification (Global Standard Reference) |
|---|
| Rated Capacity | 500 kg – 3000 kg (customizable up to 5000 kg) |
|---|
| Drive Mechanism | Geared / Gearless Traction Motor with Counterweight System |
|---|
| Load Suspension | High-strength Wire Rope / Flat Belt (EN 81-20 compliant) |
|---|
| Travel Height | Standard up to 15 m (can be extended up to 40 m) |
|---|
| Speed | 0.25 – 0.5 m/s (typical for goods lifts, as per ISO 4190) |
|---|
| Car Structure | Heavy-duty Mild Steel with Anti-corrosion Coating |
|---|

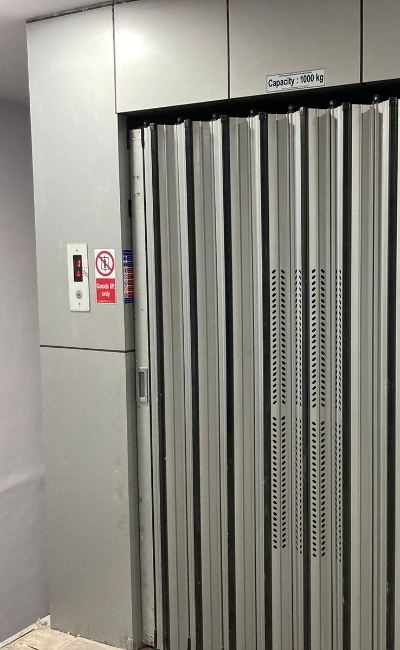

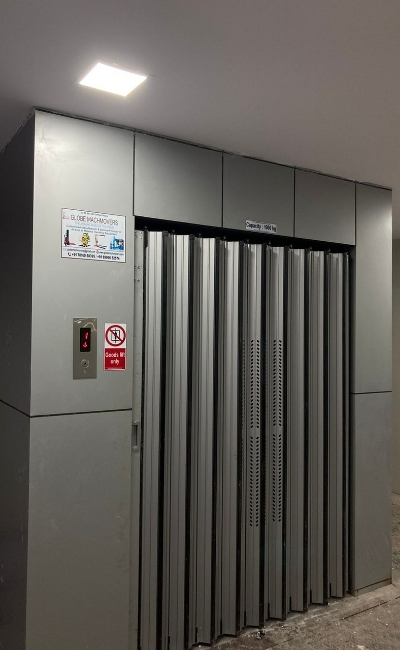

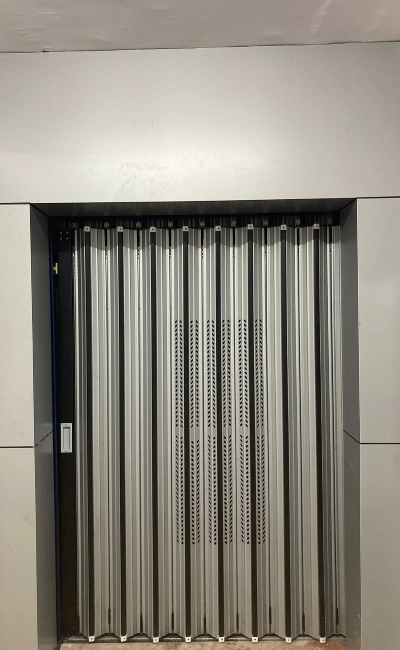

| Door Type | Manual Collapsible, Bi-parting, or Automatic Sliding (per EN 81-58) |
|---|
| Landing Access | Single or Through Entry (customized as required) |
|---|
| Safety Features | Overload Sensor, Limit Switches, Buffer System, Electromechanical Interlocks, Emergency Stop, Reverse Phase & Phase Failure Protection |
|---|
| Control System | Microprocessor-based, Collective Selective Control, Call & Indicator Panels with Fault Diagnostics |
|---|
| Power Supply | 3 Phase, 415V AC, 50/60 Hz (custom options for export) |
|---|
| Guide Rails | T-Section Steel, Machined & Aligned (ISO 7465 compliant) |
|---|
| Buffers | Polyurethane / Spring / Hydraulic Buffers (EN 81-1 approved) |
|---|
| Braking System | Electromechanical Disc Brake with Fail-Safe Design |
|---|
| Counterweight | Mild Steel Frame with Cast Iron / Concrete Filling |
|---|

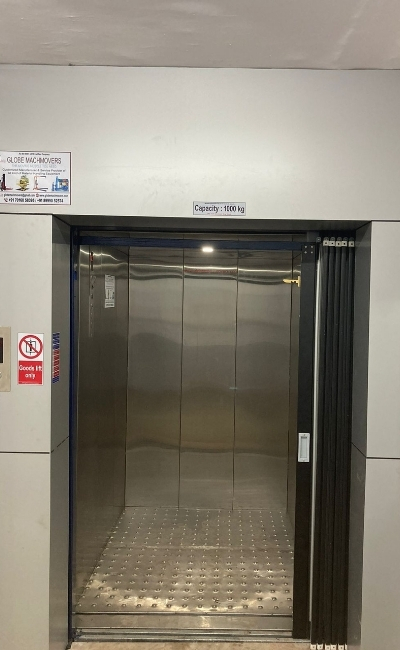

| Flooring | Anti-skid Chequered Plate (SS304 / MS) |
|---|
| Control Panel Protection | IP54 (standard), IP65 (optional for dust-heavy environments) |
|---|
| Warranty | 12–18 Months (extendable with AMC) |
|---|
| Compliance Standards | EN 81-20/50, ISO 4190, IS 14665, IEC 60335 Safety Standards |
|---|
| Country of Origin | Made in India – Designed to meet Global Export Standards |
|---|
Key Features:
- Energy-Efficient Operation – Counterweight system reduces motor load and power consumption.
- Smooth Traction Drive – Ensures vibration-free, silent, and controlled vertical movement.
- Robust Structural Build – Heavy-duty MS fabrication for high durability under continuous operations.
- Integrated Safety Systems – Includes overload protection, limit switches, emergency stop, and interlocking.
- Customizable Design – Platform dimensions, travel height, and load capacity tailored to client requirements.
- Low Maintenance – Simplified traction system ensures reduced wear and long service intervals.
- Flexible Installation – Suitable for indoor applications with or without a lift shaft.
Applications:
- Industrial Warehouses & Logistics Hubs
- Multi-storey Manufacturing Facilities
- Heavy Material Handling in Production Units
- Automobile & Engineering Workshops
- Storage & Distribution Centres
- Retail & Commercial Stock Rooms
Why Choose Globe MachMovers?
- Leading Traction Goods Lift Manufacturer in Pune, with pan-India supply across Bangalore, Hyderabad, Mumbai & beyond.
- ISO-certified quality & safety standards.
- Proven expertise in material handling & lifting solutions.
- End-to-end customization, installation, and technical support.
- Reliable after-sales service with timely spares availability.
- Trusted by top industries nationwide.
