Heavy-Duty Lifting Solutions by Globe Machmovers
Globe Machmovers brings you advanced Double Mast Hydraulic Goods Lifts designed for robust industrial applications. With superior load capacity, stability, and safety features, these goods lifts are ideal for vertical transportation of materials across multiple floors in warehouses, factories, and industrial units.
If you're looking for reliable and efficient Double Mast Hydraulic Lift manufacturers in Pune or Double Mast Goods Lift suppliers in Bangalore, Globe Machmovers is your trusted partner.
General Description

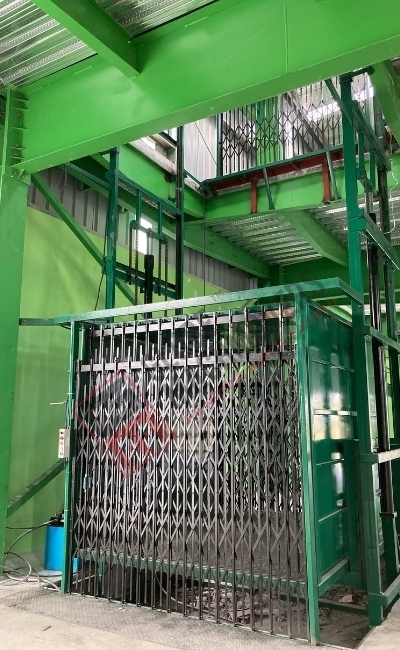

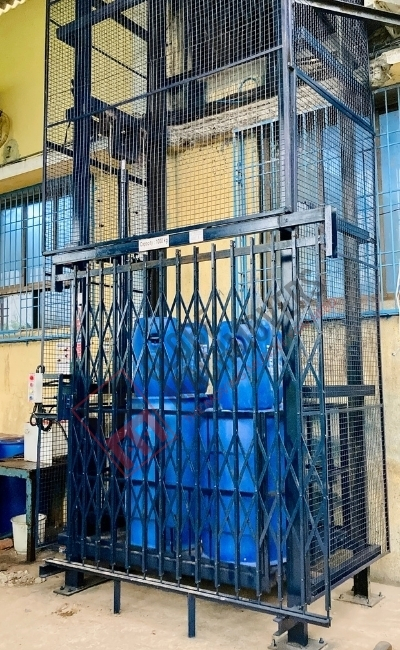

The Dual Mast Hydraulic Goods Lift is a fixed vertical transportation system engineered for safe and efficient movement of materials between multiple floors. The system is driven by heavy-duty hydraulic cylinders with C-channel guided structures, ensuring stability, strength, and durability in demanding industrial environments.
Structural Assembly
- Main Frame: Fabricated from IS-grade structural steel (VSP/SAIL E250 or equivalent).
- Mast Construction: Built using heavy-duty MS pipes (5 mm wall thickness) and 10 mm MS flat bars.
- Platform: Robust MS framed platform with anti-slip MS sheet decking.
- Guides & Channels: Precision-machined MS guide rails with chain drive support.
- Lifting Chains: 16B-2 double strand roller chains, designed for extended service life.
- Enclosures: Optional MS sheet, perforated sheet, or wire mesh panels.
Hydraulic System
- Cylinders: Double-acting hydraulic cylinders with honed seamless tubes.
- Piston Rods: Hard-chrome plated for wear and corrosion resistance.
- Seals: High-strength imported sealing kits for leak-free performance.
- Quantity: Two hydraulic cylinders with synchronized operation.
Safety Features
- Limit switches provided at all landing levels.
- Mechanical/electrical interlocks on platform and entry/exit doors.
- Manual emergency lowering in case of power failure.
- Overload safety through hydraulic relief valve.
- Guard rails or cabin enclosure as per customer requirement.
Drive & Power Pack
- Motor: High-efficiency induction motor (ABB / Bharat Bijlee / Crompton or equivalent).
- Pump: Gear pump with cartridge-type solenoid valve.
- Circuit: Includes suction filter, pressure relief valve, check valve, and flow control valve.
- Control Panel: Equipped with overload relay, MCB, PRA relay, and limit switches & 24V auxiliary circuit for operator safety.
Surface Protection
- Complete steel structure shot-blasted, primer coated, and finished with industrial-grade powder coating or PU finish.
Optional Accessories
- Auto / Swing / Collapsible doors with interlocking system
- Top enclosure with MS sheet / mesh for overhead safety.
- Safety light curtains on open sides.
- Lip plates for trolley handling.
Technical Specifications:
| Load Capacity | 500 – 2500 kg (customizable up to 5000 kg) |
|---|
| Platform Size (W × L) | Customizable as per requirements |
|---|
| Lift Height | 3000 – 6000 mm (or as per site requirement) |
|---|
| Cage Height | 2000 – 2500 mm |
|---|
| Power Pack Rating | 3 HP – 10 HP (depending on load/height) |
|---|
| Operating Levels | G+1 / G+2 / G+3 (expandable) |
|---|
| Motor | 3-Phase, 415 V AC (Other options on request) |
|---|
| Enclosure Options | MS Sheet / MS Wire Mesh / Combination |
|---|
| Controls | Manual / Automatic with interlocks |
|---|
Key Features:
- Double Mast Support for added strength and balance
- Safety Interlocks & Emergency Stop for secure operations
- Hydraulic Power Pack System for smooth performance
- Rugged Structure to handle tough industrial environments
- Tailor-made Designs as per client requirements
- Available across India
Applications:
- Manufacturing Industries
- Multi-Storey Warehouses
- Logistics & Distribution Centers
- Automobile Workshops
- Heavy Equipment Handling Areas
- Storage Units & Retail Back-End Operations
Why Choose Globe Machmovers?
- One of the leading goods lift manufacturers in Pune
- Strong presence in Bangalore, Hyderabad, Mumbai & across India
- ISO-compliant manufacturing and quality control
- Dedicated after-sales service and installation support
- Customized lifting solutions tailored to your operational needs
Enquire Now
Looking for a reliable Double Mast Hydraulic Goods Lift for your business?
Contact Globe Machmovers today to get a quote or book a site assessment.
