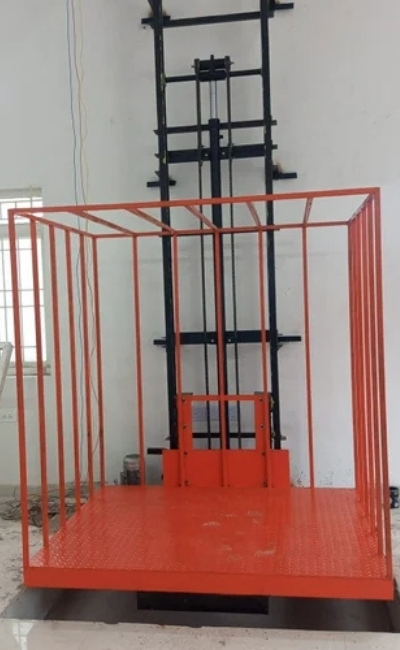

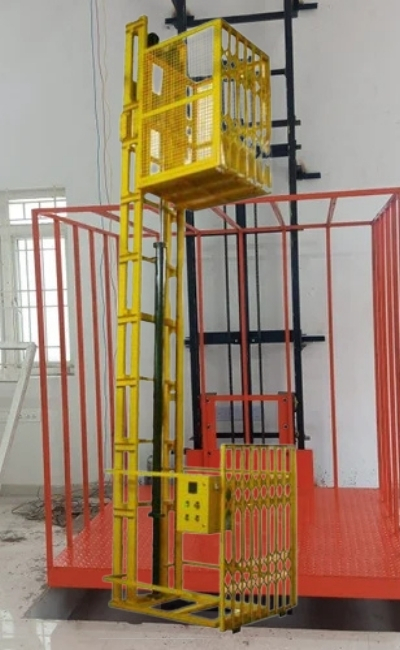

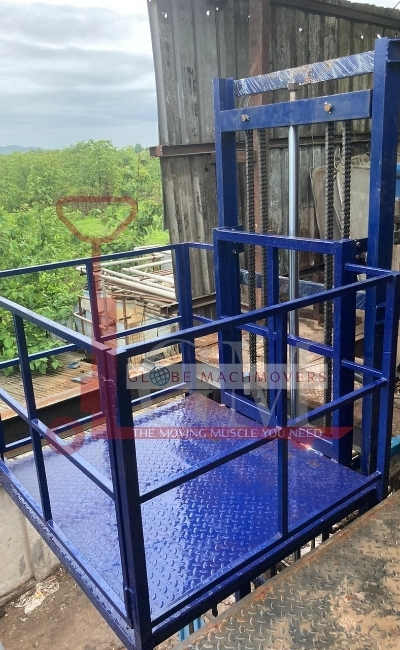

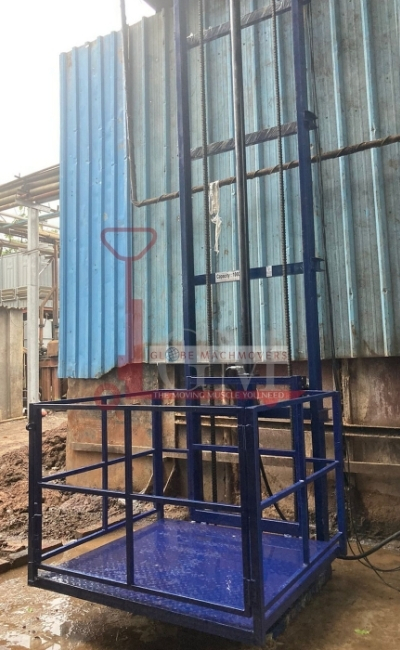

Single Mast Hydraulic Goods Lift
The Globe Machmovers Single Mast Hydraulic Goods Lift is engineered for efficient vertical transportation of materials between floors. Designed with a compact mast structure and wall-mounted support system, the lift ensures maximum utilization of warehouse or shop floor space. With three open sides for loading/unloading and robust hydraulic actuation, it delivers reliable performance in demanding industry.
Key Technical Highlights
- Compact Structural Design – Single mast column engineered for minimal footprint and maximum storage utilization.
- Heavy-Duty Construction – Fabricated using high-grade structural steel with precision welds for long service life under continuous duty cycles.
- Hydraulic Power Pack – Equipped with a high-efficiency hydraulic cylinder and pump unit for controlled lifting and descent.
- Operator-Friendly Controls – Intuitive push-button pendant station / control panel with floor call registration and emergency stop functions.
- Safety & Compliance – Integrated electro-mechanical interlocks, overload protection, hose burst valve, and emergency lowering mechanism as per industrial safety norms.
- Customizable Configurations – Available with variable platform sizes, load capacities, and lift heights tailored to client requirements.
Single Mast Hydraulic Goods Lift – Technical Specifications
The Single Mast Hydraulic Goods Lift is an ideal solution for vertical material movement where space is limited, but load efficiency cannot be compromised. With a sturdy mast structure, hydraulic lifting mechanism, and customizable platform size, it offers unmatched performance for light to medium-duty applications.
Technical Specifications:
| Capacity (KG) |
500 – 2000 kg |
| Platform Size (W x D) |
Customizable: 1000×1000 mm up to 1700×1700 mm |
| Max. Lift Height (Ground to Topmost Level) |
Up to 10,000 mm (10 m) |
| Mast Type |
Single Column, Structural Steel Fabricated |
| Drive System |
Hydraulic Actuation via Power Pack |
| Control Mode |
Push Button Station / Pendant with Call & Send Operations |
| Operation |
Hold-to-run (continuous pressure operation) |
| Stops / Floors |
As per site requirement (typically G+1, G+2, etc.) |
| Speed |
4 – 6 m/min (approx., dependent on load) |
| Safety Provisions |
Overload Relief Valve, Hose Burst Valve, Emergency Lowering, Mechanical Locking System |
| Power Pack Unit |
Hydraulic Pump with Oil-immersed Motor, Compact Tank with Return Line Filter |
| Guide System |
Precision Guide Rails with Heavy-Duty Rollers |
| Platform Construction |
MS Fabricated Frame with 5 mm MS / Anti-Skid Checker Plate Flooring |
| Door Options |
MS Collapsible Gate / Swing Door at Landings |
| Landing Interlocks |
Electro-Mechanical Door Interlocks (prevents operation if gate open) |
| Electrical Supply |
415 V ±10%, 50 Hz, 3 Phase + Neutral + Earth |
| Control Panel |
Microprocessor-Based / Contactor Logic Control |
| Indicators |
UP/DOWN Direction Indicator, Floor Position Display, Load Indicator (optional) |
| Emergency Features |
Stop Switch, ARD (Automatic Rescue Device) on Power Failure |
| Customization |
Platform size, load capacity, speed, and mast height available as per requirement |
Key Features:
- High Lifting Efficiency – Supports travel heights of up to 10 meters, making it suitable for mezzanine floors and multi-level storage.
- Robust Structural Design – Heavy-duty single mast fabricated from structural steel for durability and long service life.
- Flexible Loading/Unloading Access – Open on three sides for easy material handling via trolleys, pallets, or forklifts.
- Hydraulic Drive System – Equipped with a low-maintenance hydraulic power pack that ensures smooth, controlled vertical movement
- Operator Safety – Platform safety railings, electro-mechanical door interlocks, and emergency lowering function ensure safe operations
- Easy Installation & Maintenance – Wall-supported design allows for hassle-free installation and minimal maintenance downtime.
- Versatile Applications – Ideal for warehouses, manufacturing plants, automotive workshops, logistics hubs, and container loading/unloading operations.
Key Engineering Advantages
- Space-Efficient Layout – Single mast design ideal for warehouses with limited floor space.
- Durable Hydraulic System – High-performance pump, motor, and cylinder designed for continuous duty.
- Safe & Reliable – Incorporates all standard hydraulic lift safety measures, including overload relief, hose-burst protection, and emergency lowering.
- Operator-Friendly Controls – Simple push-button interface, ensuring quick learning curve and minimal operator fatigue.
- Versatile Applications – Suitable for warehouses, manufacturing units, mezzanine floors, and multi-level storage.
