Hoist Goods Lift
The Globe Machmovers Hoist Goods Lift is engineered for heavy-duty vertical material handling, designed to sustain high load capacities and continuous operation in demanding industrial environments. Constructed with precision-fabricated structural frames, certified hoisting components, and reinforced enclosures, these lifts deliver long service life, operational stability, and safety compliance.
Key Technical Highlights
- Heavy-Duty Structural Design – MS fabricated shaft frame and platform, CNC-bent panels, and anti-corrosive powder coating ensure mechanical integrity and durability under repetitive loading cycles.
- Industrial-Grade Hoisting Mechanism – Wire rope hoist system with crane-duty motor and gearbox, optimized for smooth acceleration, controlled deceleration, and reduced mechanical stress.
- Versatile Application Range – Configurable for warehouses, manufacturing plants, logistics hubs, and multi-storey industrial facilities.
- Efficient Operation – Microprocessor-based down collective control with feather-touch operation, fault diagnostics, and safety interlocks.
- Integrated Safety Systems – Over speed governor, overload detection, electromechanical door interlocks, emergency stop circuits, reverse-phase protection, and ARD (Automatic Rescue Device) for power failure conditions.
- Custom Engineering Options – Shaft dimensions, platform sizes, load ratings, and door configurations can be tailored to match site-specific installation and material flow requirements.
Technical Specifications – Hoist Goods Lift
The Globe Machmovers Hoist Goods Lift is designed for vertical transportation of materials between multiple floors in industrial facilities, warehouses, and logistics hubs. Engineered for rugged duty cycles and high-load operations, it requires wall support on one side, with the remaining two sides available for loading and unloading operations. Its wire rope hoist mechanism, precision guide systems, and integrated safety features ensure reliable performance, structural stability, and compliance with Indian elevator standards.
Technical Specifications:
| Parameter | Specification |
|---|
| Type | Hoist-Driven Goods Lift |
|---|
| Travel Configuration | Upto G+5 |
|---|
| Rated Load Capacity | 7000Kg |
|---|
| Entrances / Openings | Depends on Location |
|---|
| Pit Depth (Internal) | 1000 mm |
|---|
| Travel Speed | 6 m/min (nominal) |
|---|
| Door Type | Manual, Single-Side Pull |
|---|
| Landing Entrance Opening (W x H) | Depends on Location |
|---|
| Landing Gates | MS Collapsible Type with Electro-Mechanical Interlocks |
|---|
| Control System | Microprocessor-Based DN Collective Control with Feather-Touch Buttons & Call Registration Lights |
|---|
| Drive Mechanism | Wire Rope Hoist |
|---|
| Motor & Gearbox | 1-10 HP Hindustan/ Crompton or Similar Reputed Make, S4 Crane Duty Motor with Fabricated Gearbox |
|---|
| Hoisting Medium | Usha Martin Wire Rope (6x36 Certified Construction) |
|---|
| Power Supply | 415V AC, 3-Phase, 50 Hz (Main) & 230V AC (Control) |
|---|
| Indicators | Digital 4-Segment UP/DOWN Position Display at All Landings |
|---|
| Safety Devices | Electrical & Mechanical Overspeed Governor, Overload Protection, Terminal Limit Switches |
|---|
| Phase Protection | Reverse Phase, Single Phase & Phase Failure Protection (VSP Board) |
|---|
| Emergency Features | Emergency Stop Switch (Car & Landings), Brake Releasing Lever, De-Locking Key for Manual Rescue During Breakdown / Power Failure |
|---|
| Safety Interlocks | Lift operation inhibited if any gate/door not securely closed; Visual Indicators for Open Gates |
|---|
Key Features:
Control Panel & Wiring
- Microprocessor-based Collective Control System (passenger-lift grade) engineered for high reliability and operational safety.
- Functions include: call registration lights, directional arrows, fault indicators, single-phase & phase-failure protection, overload protection, terminal limit switches, interlocking switches, reverse-phase protection, and emergency stop circuits.
- Maintenance mode with 25 AMP Siemens/L&T make up/down contactors.
- Designed as per BIS/IS codes for elevator control systems.
Electrical Cabling
- ISI-marked Polycab flexible copper cables (1 mm, 2C, 4C & 12C) for machine room wiring, pendant wiring, cabin dangling cables, door limit, and floor limit circuits.
- Secured with PVC wiring glands and GI cable trays for durability and organized installation.
Pendant Station

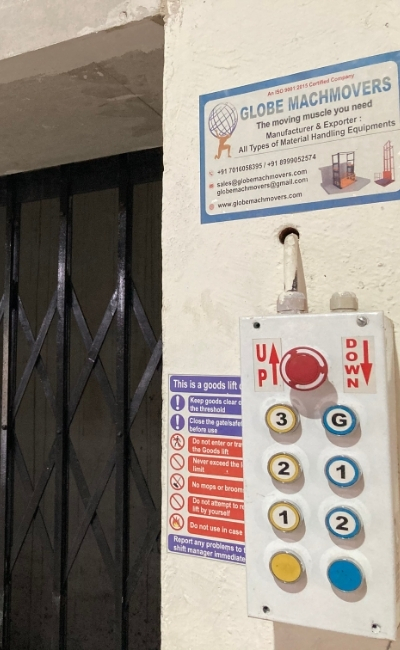

- Industrial-grade powder-coated control panel with Avon switches
- Includes floor call buttons with call registration lights, emergency stop switch, rotating switch for cabin door, up/down indicators, and position indicators at all landings.

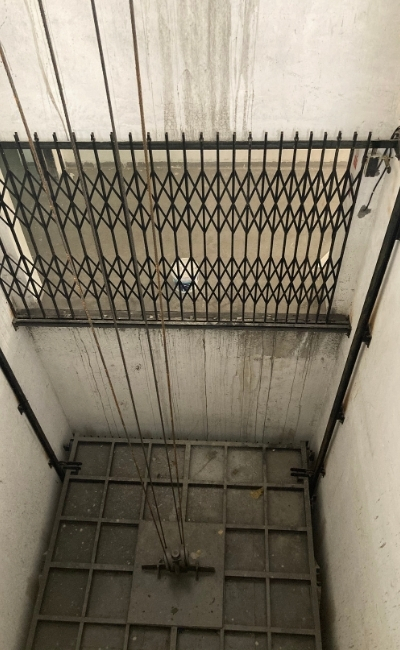

Landing Doors
- MS collapsible manual doors (2200 mm x 3000 mm), with precision bearings, gibs, and bumpers.
- Frames: ISA 65x6 mm with 25 mm square bar reinforcement.
- Provided with electro-mechanical locks for every floor to ensure safe operation. (4 sets)
Cabin Doors
- MS collapsible doors (2200 mm x 3000 mm), designed with reinforced frame and locking mechanisms for reliability. (2 sets)
Cabin
- CNC machine-cut for dimensional accuracy.
- Three-sided enclosure with LED illumination.
- Base platform: 5 mm SS 304 checker plate for heavy-duty flooring.

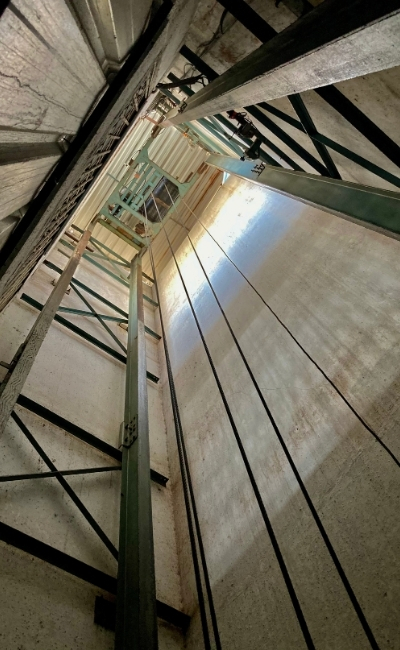

Guide Rail & Guide Shoes
- Heavy-duty MS T-rails (89 mm x 12 mm) with machined finish, mounted using brackets and CSK clips.
- MS guide shoes with PVC liners for smooth and vibration-free travel (8 sets).
Buffers
- Heavy-duty spring buffers installed at the pit base to absorb shock and ensure smooth stopping (4 sets).
Overspeed Governor & Safety Block
- 6 mm wire rope single-loop safety governor with pulleys, actuator levers, and 4 safety blocks.
- Automatically engages if car speed exceeds pre-set safety limit.
Safety & Special Features
- Electro-mechanical landing door interlocks – doors open only when car is present.
- Multi-floor indication system – if car/landing doors are open, indicators are displayed on all levels.
- Automatic Rescue Device (ARD) – in case of mains power failure, lift automatically lowers to nearest landing using battery backup.
- Weight Display System – integrated weighing indicator with load display for operator safety.
- Limit Switches – up and down final limit switches provided for safe travel termination.
- Emergency Provisions – brake release lever & de-locking key for manual evacuation during breakdown or power failure.
