UHMW Solid Block Wheel
Heavy-Duty Performance | Corrosion Resistance | Ultra-Durable Design
Globe MachMovers is a trusted UHMW Solid Block Wheel manufacturer in India, offering ultra-durable wheels made from Ultra High Molecular Weight Polyethylene (UHMW-PE) solid blocks. These wheels are engineered for heavy-duty, high-impact industrial applications where chemical resistance, shock absorption, and long service life are critical.
What are UHMW Solid Block Wheels?

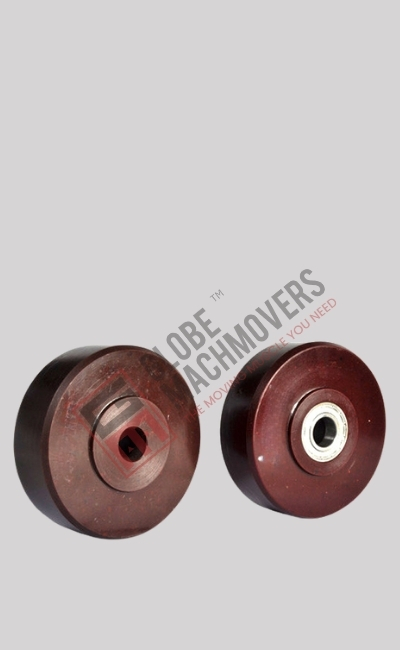

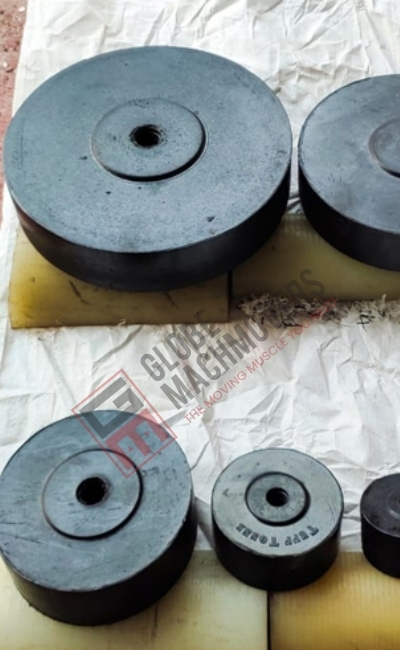

The UHMW Solid Block Wheel is machined from a single block of virgin-grade UHMW-PE, delivering unmatched performance in terms of wear resistance, impact tolerance, and chemical stability. Unlike molded or composite wheels, these solid wheels offer dimensional stability, crack resistance, and are completely non-marking and non-absorbent, even in wet or acidic environments.
Technical Specifications
| Material | UHMW-PE (Ultra High Molecular Weight Polyethylene) |
|---|
| Wheel Type | Solid Block (Machined from solid UHMW block) |
|---|
| Wheel Diameter | 75 mm to 300 mm (custom sizes available) |
|---|
| Wheel Width | 25 mm to 100 mm |
|---|
| Load Capacity | 100 kg to 2000 kg (depends on size and bearing support) |
|---|
| Hardness | Shore D 63–70 |
|---|
| Bearing Options | Without Bearing / With Machined Bore / Inserted Bush or Bearing |
|---|
| Temperature Range | -100°C to +80°C |
|---|
| Impact Resistance | Excellent – Absorbs shock without cracking |
|---|
| Chemical Resistance | Excellent – Resistant to acids, alkalis, and most solvents |
|---|
| Water Absorption | <0.01% – Ideal for wet/humid environments |
|---|
| Friction Coefficient | Very Low – Reduces drag and wear |
|---|
| Noise Level | Very Low – Ideal for quiet operations |
|---|
| Mounting Type | Central bore, Keyway (optional), Bolt fitting |
|---|
| Machinability | Easily machinable for custom profiles and grooves |
|---|
| Color Options | White (Natural), Green, Black (Color depends on grade) |
|---|
| Surface Finish | Smooth / Machined |
|---|
| Certifications | FDA Grade (if required), ISO 9001, RoHS compliant |
|---|
| Applications | Sliding mechanisms, conveyor systems, mobile trolleys, heavy-duty carts, food & pharma equipment |
|---|
Key Features
- Material: 100% Virgin UHMW-PE Solid Block
- Wheel Diameter: 100 mm to 400 mm (custom sizes available)
- Load Capacity: Up to 2,500 kg per wheel
- Core Type: Solid (no inserts) or with metal insert for axle
- Operating Temperature: -100°C to +80°C
- Noise Level: Ultra-quiet, shock-absorbing operation
- Chemical Resistance: Excellent resistance to acids, alkalis, and salts
- Mounting: Plain bore, keyed bore, or custom-machined hub
Applications
- Heavy-duty trolley wheels
- Mobile equipment in chemical or pharma plants
- Conveyor transfer rollers
- Non-corrosive marine and offshore wheels
- Food-grade handling carts
- Impact zones in automated assembly or washdown areas
Industries We Serve
- Chemical & Fertilizer Manufacturing
- Pharmaceuticals & Cleanroom Environments
- Food & Beverage Processing Units
- Marine & Shipbuilding
- Defense & Aerospace
- Pulp & Paper, Packaging Industries
Benefits of Globe MachMovers’ UHMW Solid Block Wheels
Our UHMW Solid Block Wheels offer superior impact strength to prevent chipping, cracking, or breaking under stress, low friction rolling for easy movement and energy efficiency, zero water absorption suitable for wet and washdown environments, a non-marking surface to protect floors in sensitive clean areas, chemical and corrosion resistance for reliable performance in aggressive conditions, and maintenance-free operation with a long lifespan.
Why Choose UHMW Solid Block Wheels from Globe MachMovers?
- Reputed UHMW Solid Block Wheel manufacturer in India
- In-house CNC precision machining for dimensional accuracy
- Customization available in bore types, diameters, widths, and inserts
- ISO-compliant manufacturing and strict quality control
- Fast delivery timelines and strong service support across India
Need high-performance wheels for extreme environments?
Trust Globe MachMovers, your reliable UHMW Solid Block Wheel supplier in India, for heavy-duty, corrosion-resistant wheels designed for long-term industrial performance.
Enhance your material handling with our durable and efficient UHMW solid block wheels.
