Fixed Caster
Straight-Line Stability | High Load Capacity | Durable Design
Globe MachMovers is a leading Fixed Caster manufacturer in India, offering precision-engineered, high-performance casters designed for straight-line mobility and heavy load-bearing applications. Our fixed casters are built with rugged frames and high-quality wheels, making them ideal for equipment and trolleys where directional movement is essential.
What are Fixed Casters?

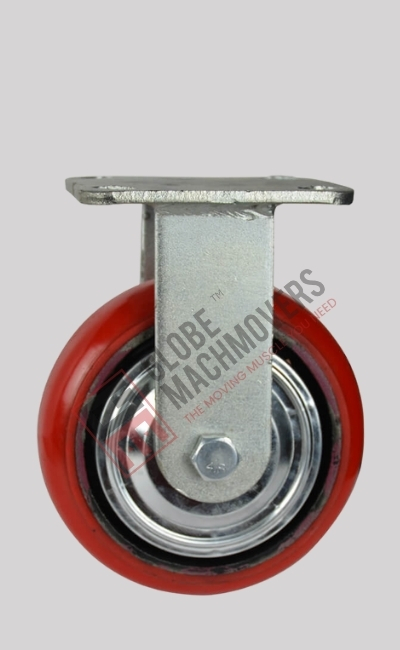

The Fixed Caster, also known as a rigid caster, is mounted in a stationary bracket that does not swivel. It enables movement in a straight line and is typically used in combination with swivel casters to ensure both directional stability and maneuverability. Available with different wheel types like PU, Nylon, UHMW, Rubber, and Cast Iron, our fixed casters are suitable for both light-duty and heavy-duty applications across diverse industrial sectors.
Technical Specifications
| Caster Type | Fixed / Rigid (non-swiveling) |
|---|
| Wheel Material | Nylon / PU (Polyurethane) / Rubber / Cast Iron / UHMW |
|---|
| Frame Material | Pressed Steel / Stainless Steel / Mild Steel (MS) |
|---|
| Mounting Type | Top Plate Mount |
|---|
| Wheel Diameter | 50 mm to 300 mm |
|---|
| Wheel Width | 20 mm to 75 mm |
|---|
| Load Capacity | 50 kg to 2000 kg (varies by size and material) |
|---|
| Overall Height | 70 mm to 350 mm |
|---|
| Bearing Type | Ball Bearing / Roller Bearing / Plain Bore |
|---|
| Mounting Plate Size | 75x60 mm to 135x110 mm (LxW) |
|---|
| Bolt Hole Spacing | 55x40 mm to 105x80 mm (LxW) |
|---|
| Bolt Hole Diameter | 8 mm to 12 mm |
|---|
| Tread Type | Flat / Slight Radius / Grooved (based on wheel) |
|---|
| Finish | Zinc-Plated / Powder-Coated / Black Oxide |
|---|
| Temperature Range | -20°C to +80°C (varies by wheel material) |
|---|
| Floor Protection | Yes (for PU/Rubber wheels) |
|---|
| Noise Level | Low to Medium (depends on wheel material) |
|---|
| Corrosion Resistance | Optional Stainless Steel Caster for high-moisture environments |
|---|
| Typical Applications | Trolleys, Material Handling Carts, Dollies, Hospital Beds, Industrial Platforms |
|---|
Key Features
- Frame Type: Heavy-duty steel / stainless steel rigid frame
- Mounting: Top plate with pre-drilled bolt holes
- Wheel Diameter Range: 75 mm to 300 mm
- Load Capacity: Up to 2,500 kg per caster
- Wheel Material Options: PU, Nylon, UHMW, Rubber, CI, or Hybrid
- Finish Options: Zinc plated, powder-coated, or SS
- Operating Temperature Range: -30°C to +80°C
- Floor Compatibility: Concrete, epoxy, tiles, steel plates
Applications
- Assembly line carts
- Warehouse trolleys and bins
- Machinery and equipment bases
- Hospital and institutional trolleys
- Retail & logistics carts
- Heavy-duty material handling dollies
Industries We Serve
- Manufacturing & Engineering
- Pharmaceuticals & Healthcare
- Warehousing & Logistics
- Retail & E-commerce
- Food Processing & Packaging
- Airports & Railways
Benefits of Globe MachMovers’ Fixed Casters
Our Fixed Casters offer straight-line movement for stability and prevention of unwanted turns, high load capacity perfect for heavy industrial equipment, durable construction built to withstand continuous, rugged use, customizable wheel material suitable for different floor and load conditions, and maintenance-free operation with a long service life.
Why Choose Fixed Casters from Globe MachMovers?
- Reputed Fixed Caster manufacturer and supplier in India
- Compatible with various industrial wheels and trolley designs
- Custom size, material, and mounting plate options available
- Trusted by OEMs, factories, and logistics operators across India
- Fast delivery and technical support for bulk orders
Looking for reliable, heavy-duty fixed casters for your machinery or trolleys?
Partner with Globe MachMovers, the most trusted Fixed Caster supplier in India, and get unmatched quality, durability, and performance with every wheel.
Enhance your material handling with our robust fixed casters.
