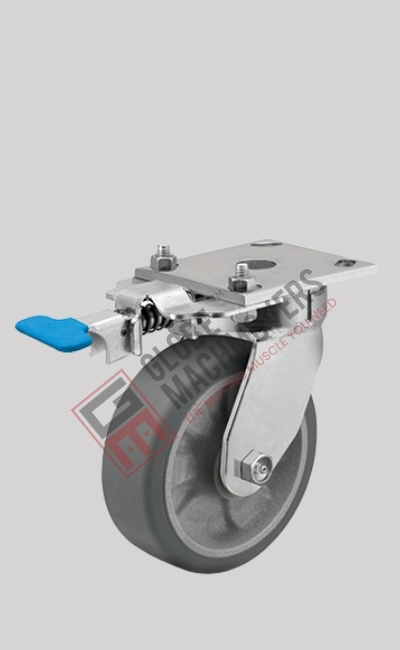

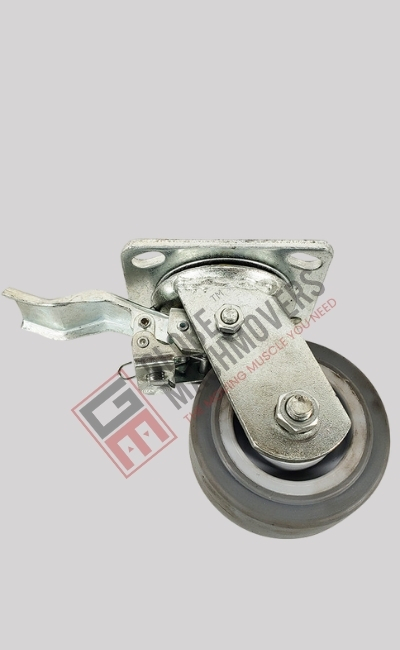

Swivel Caster with Locking
360° Mobility | Secure Locking | Durable Performance
Globe MachMovers is a premier Swivel Caster with Locking manufacturer in India, providing advanced mobility solutions that offer smooth rotation with reliable locking mechanisms. These casters are engineered for industrial, medical, hospitality, and commercial equipment, combining the benefits of full 360° swivel mobility with the added safety of integrated brakes.
What are Swivel Casters with Locking?
Our Swivel Caster with Locking features a high-strength rotating fork and a robust locking mechanism that can secure either the wheel only or both wheel and swivel head (total lock). These casters provide precision mobility and secure positioning, ensuring operator safety and equipment stability during loading, unloading, or stationary operations.
Technical Specifications
| Caster Type | Swivel with Locking (Brake) Mechanism |
|---|
| Lock Type | Side Brake / Total Lock (wheel & swivel lock) |
|---|
| Wheel Material | PU (Polyurethane) / Rubber / Nylon / UHMW / TPR / Cast Iron |
|---|
| Frame Material | Pressed Steel / Mild Steel / Stainless Steel |
|---|
| Mounting Type | Top Plate / Stem Mount |
|---|
| Wheel Diameter | 50 mm to 300 mm |
|---|
| Wheel Width | 20 mm to 75 mm |
|---|
| Load Capacity | 70 kg to 2000 kg (depending on size & material) |
|---|
| Overall Height | 70 mm to 350 mm |
|---|
| Bearing Type | Ball Bearing / Roller Bearing / Plain Bore |
|---|
| Mounting Plate Size | 75x60 mm to 135x110 mm (LxW) |
|---|
| Bolt Hole Spacing | 55x40 mm to 105x80 mm (LxW) |
|---|
| Bolt Hole Diameter | 8 mm to 12 mm |
|---|
| Swivel Radius | 75 mm to 150 mm |
|---|
| Swivel Mechanism | Twin Ball Raceway / Taper Roller / Kingpinless |
|---|
| Tread Type | Flat / Slight Radius / Grooved |
|---|
| Finish | Zinc-Plated / Powder-Coated / Chrome / Black Oxide |
|---|
| Temperature Range | -20°C to +80°C (varies by wheel material) |
|---|
| Floor Protection | Yes (PU, TPR, Rubber options) |
|---|
| Brake Actuation | Foot-operated / Pedal Type |
|---|
| Noise Level | Low (Rubber, PU, TPR) to Medium (Nylon, CI) |
|---|
| Corrosion Resistance | Optional (Stainless Steel frame available) |
|---|
| Applications | Hospital Beds, Industrial Trolleys, Food Equipment, Furniture, Tool Carts |
|---|
Key Features
- Swivel Design: 360-degree smooth rotation
- Locking Mechanism: Wheel lock or total lock (wheel + swivel)
- Wheel Diameter Range: 75 mm to 300 mm
- Load Capacity: Up to 2,500 kg per caster
- Mounting Options: Top plate / Bolt-on with standard hole configurations
- Frame Material: Heavy-duty MS, powder-coated or stainless steel
- Wheel Materials: PU, Nylon, Rubber, UHMW, Cast Iron
- Temperature Range: -30°C to +80°C
- Finish Options: Zinc-plated, chrome, or custom coating
Applications
- Medical and hospital equipment
- Material handling trolleys and platform trucks
- Assembly line mobile stations
- Retail displays and supermarket carts
- Laboratory & cleanroom transport systems
- Furniture and fixtures in hotels, offices, and malls
Industries We Serve
- Healthcare & Pharmaceuticals
- Warehousing & Logistics
- Manufacturing & Engineering
- Food Processing & Cold Storage
- Retail & Commercial Infrastructure
- Aerospace & Defense
Benefits of Globe MachMovers’ Swivel Casters with Locking
Our Swivel Casters with Locking offer enhanced safety and stability with a locking system to ensure equipment stays in place, smooth maneuverability for easy directional changes even in tight spaces, heavy load handling built for industrial-grade performance, non-marking and floor-safe wheels ideal for epoxy, tiles, and vinyl floors, low maintenance with a long-lasting durable design, and custom brake options including side brake, top brake, or total lock.
Why Choose Swivel Casters with Locking from Globe MachMovers?
- Trusted Swivel Caster with Locking manufacturer in India
- Multiple configurations, wheel types, and sizes available
- In-house quality testing and precision engineering
- Large inventory for bulk orders and OEM supply
- Fast shipping and technical support across India
Looking for safe, high-performance casters with secure braking?
Choose Globe MachMovers, your reliable locking swivel caster supplier in India, and get the perfect balance of mobility, control, and safety for your applications.
Enhance your operations with our robust swivel casters with locking mechanisms.
