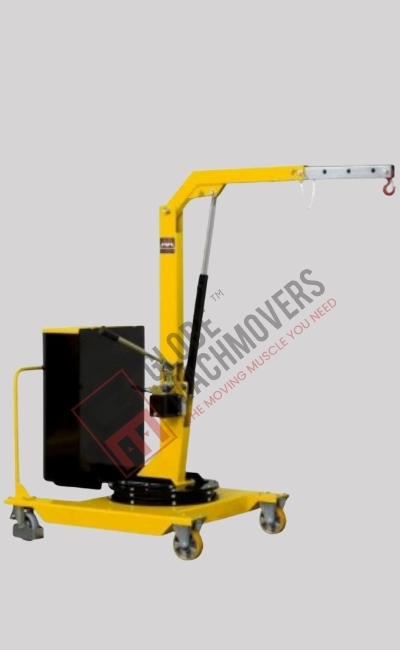

Rotating Counter Weight Floor Crane
360° Precision Lifting | Space-Saving Design | Stable Operation
Globe MachMovers is a trusted Rotating Counter Weight Floor Crane manufacturer in India, offering innovative lifting solutions that provide maximum flexibility, stability, and reach in space-constrained environments. Designed for precision lifting and placement, these cranes feature a rotating boom and integrated counterweight system, eliminating the need for extended legs or outriggers.
What is a Rotating Counter Weight Floor Crane?
A Rotating Counter Weight Floor Crane is a specialized mobile crane with a 360-degree rotating boom arm and a built-in counterweight, allowing it to lift and swivel heavy loads safely without occupying excess floor space. Constructed from heavy-duty mild steel (MS) and equipped with a hydraulic lifting mechanism, these cranes offer excellent reach, load control, and maneuverability—ideal for tasks requiring accurate positioning.
Technical Specifications
| Product Type | Rotating Arm Hydraulic Floor Crane with Counter Weight |
|---|
| Lifting Capacity | 500 kg / 1000 kg / 1500 kg / 2000 kg (customizable) |
|---|
| Rotation Angle | 270° or 360° Manual / Motorized Rotation |
|---|
| Lifting Height | Up to 3000 mm (from ground level to hook) |
|---|
| Boom Type | Fixed / Telescopic Boom with Manual or Hydraulic Extension |
|---|
| Boom Reach | 1000 mm to 2000 mm (adjustable as per model) |
|---|
| Counterweight Type | Built-in MS/CI Blocks or Removable Type |
|---|
| Lifting Mechanism | Hydraulic Cylinder with Manual / Battery Operated Power Pack |
|---|
| Power Source | Manual Pump / Battery Operated (12V/24V DC) / Electric Motor (Single/Three Phase) |
|---|
| Rotation Mechanism | Manual Slew Bearing / Gearbox Motor with Brake (for powered models) |
|---|
| Structure Material | Heavy-Duty Mild Steel with Reinforced Boom Arm |
|---|
| Chassis Type | Box Type Counterbalance Base with Rotating Arm |
|---|
| Wheels | 2 Fixed + 2 Swivel Castor Wheels |
|---|
| Wheel Material | PU / Nylon / Rubber |
|---|
| Wheel Diameter | 150 mm to 200 mm |
|---|
| Control Mode | Push Button Pendant / Remote Control (Optional) |
|---|
| Safety Features | Emergency Stop, Overload Valve, Limit Switches, Locking Pin for Rotation |
|---|
| Finish | Industrial Powder Coated or PU Paint Finish |
|---|
| Applications | Tool Rooms, Assembly Lines, Molds Handling, Maintenance, Workshop Lifting |
|---|
| Customization Options | Boom Reach, Lifting Height, Power Source, Counterweight Type, Control Option |
|---|
Key Features
- Load Capacity: 500 kg to 3000+ kg (customizable)
- Boom Arm: 360° manual or motorized rotation
- Counterweight: Pre-calculated for balanced lifting without outriggers
- Lifting Mechanism: Hydraulic cylinder (manual or electric)
- Construction: Robust MS frame with powder-coated finish
- Wheels: Heavy-duty swivel castors with brakes
- Hook: Swivel hook with safety latch for secure load holding
- Optional Upgrades: Electric lifting, remote control, adjustable boom reach
Applications
- Mold and die lifting in plastic and metal industries
- Motor and machinery maintenance in workshops
- Compact floor operations in tool rooms
- Material loading/unloading in confined areas
- Assembly and inspection stations in factories
- Logistics support where space is limited
Industries We Serve
- Plastic Injection Molding
- Automotive & Engineering
- Tool & Die Manufacturing
- Aerospace & Maintenance Facilities
- Electrical & Machine Workshops
- Foundries & Forging Units
Benefits of Globe MachMovers’ Rotating Counter Weight Floor Crane
Our Rotating Counter Weight Floor Cranes offer 360° rotation for enhanced load positioning without repositioning the crane, a counterweight design that eliminates the need for long legs or outriggers, a space-saving structure ideal for tight workspaces and assembly lines, stable and safe balanced design for risk-free lifting, and customizable configurations tailored to your height, reach, and capacity requirements.
Why Choose Rotating Counter Weight Floor Cranes from Globe MachMovers?
- Trusted Rotating Counter Weight Crane manufacturer in India
- Proven engineering for industrial-grade lifting
- Efficient, compact designs with maximum reach and flexibility
- Durable build quality for long-term usage
- Nationwide delivery and prompt after-sales service
Looking for a compact yet powerful lifting solution?
Reach out to Globe MachMovers, your expert Rotating Counter Weight Floor Crane supplier in India, and optimize your operations with space-efficient lifting technology.
Enhance your productivity with our innovative and reliable crane systems.
