Electric Wire Rope Hoist
Precision Heavy Lifting | Safe Operation | High Efficiency
Globe MachMovers is a leading Electric Wire Rope Hoist manufacturer in India, providing durable and reliable lifting solutions for manufacturing plants, assembly lines, construction sites, warehouses, and engineering workshops. Designed for precision, safety, and efficiency, our electric hoists are ideal for lifting medium to heavy loads with smooth and controlled operation.

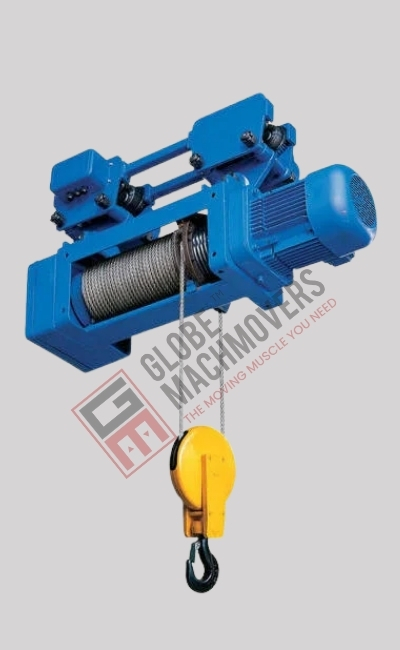

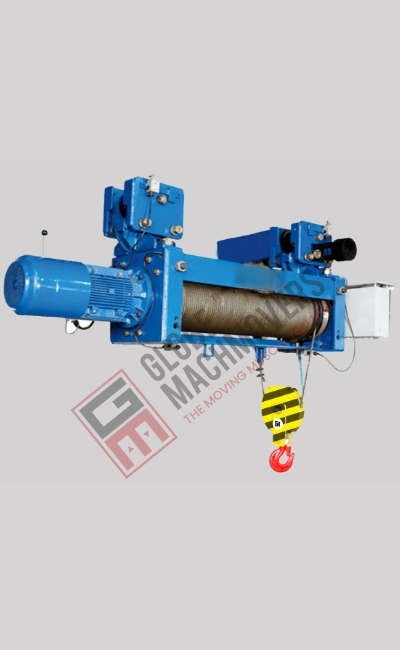

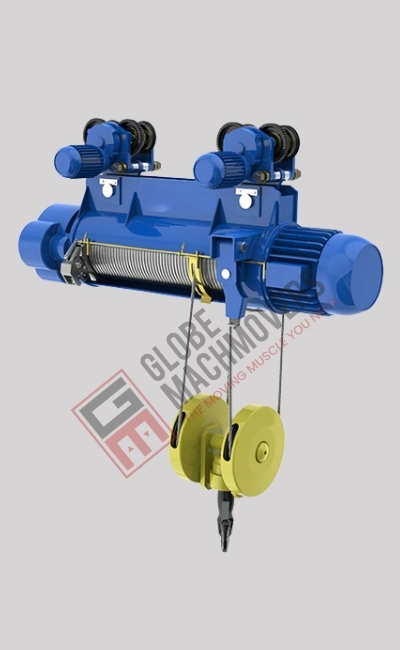

What is an Electric Wire Rope Hoist?
An Electric Wire Rope Hoist is a motor-driven lifting device that uses a strong wire rope wound around a drum to raise or lower heavy loads. It is powered by an electric motor and features a gear system, load hook, braking mechanism, and robust steel frame. Our wire rope hoists are available in single-speed or dual-speed options and can be mounted on EOT cranes, jib cranes, or monorails. Engineered for precision lifting, these hoists provide excellent load control, quiet operation, and superior safety—making them ideal for a wide range of industrial settings.
Technical Specifications
| Type | Electric Wire Rope Hoist |
|---|
| Lifting Capacity | 0.5 Ton / 1 Ton / 2 Ton / 3 Ton / 5 Ton / 10 Ton / 15 Ton / 20 Ton (Customizable) |
|---|
| Lifting Height | Standard 6 m / 9 m / 12 m / 18 m (Customizable as per application) |
|---|
| Lifting Speed | 3 to 8 m/min (depending on capacity and model) |
|---|
| Rope Diameter | 6 mm to 20 mm (based on load capacity) |
|---|
| Wire Rope Construction | 6x37 or 6x19 construction, galvanized or ungalvanized steel |
|---|
| Number of Falls | 2 / 4 / 6 (depending on lifting capacity) |
|---|
| Motor Type | Squirrel Cage Induction Motor / Brake Motor |
|---|
| Motor Power | 1 HP to 20 HP (as per model and capacity) |
|---|
| Duty Class | Class II / III / IV (Medium to Heavy Duty) |
|---|
| Power Supply | 3 Phase, 415V ±10%, 50 Hz |
|---|
| Control Voltage | 24V / 48V / 110V (Safe Voltage Control Pendant) |
|---|
| Control Method | Pendant Push Button / Wireless Remote (Optional) |
|---|
| Brake Type | DC Disc Brake / AC Electro-magnetic Brake |
|---|
| Hoist Frame | Fabricated Steel Frame with High Tensile Strength |
|---|
| Rope Drum | Machined and grooved drum, seamless pipe, mounted on ball bearings |
|---|
| Hook Type | Forged Steel Swivel Hook with Safety Latch |
|---|
| Limit Switches | Upper & Lower Limit Switches to prevent over-travel |
|---|
| Mounting | Fixed Suspension / Monorail Trolley Mounted |
|---|
| Finish | Powder Coated / Industrial Grade Paint |
|---|
| Safety Features | Overload Protection, Phase Failure Relay, Emergency Stop |
|---|
| Standards Compliance | IS 3938 / IS 807 / FEM / ISO |
|---|
| Application | Warehouses, Manufacturing, Foundries, Assembly Lines, Construction Sites |
|---|
Key Features
- Load Capacity: From 500 kg to 20,000 kg (customizable)
- Lifting Height: Up to 30 meters (as per requirement)
- Motor: High-efficiency electric motor with thermal protection
- Wire Rope: Heavy-duty galvanized rope for long life and strength
- Braking System: Electro-magnetic or DC disc brake for instant load holding
- Controls: Pendant control with optional wireless remote
- Mounting Options: Fixed, trolley-mounted, or customized setups
- Safety Features: Overload limiter, limit switches, and emergency stop
Applications
- Lifting machinery and components on assembly lines
- Loading and unloading of goods in warehouses
- Maintenance and repair operations in workshops
- Equipment handling in power plants and fabrication units
- Construction material lifting in building projects
Industries We Serve
- Heavy Engineering & Fabrication
- Automotive & Aerospace
- Power Plants & Utilities
- Logistics & Warehousing
- Marine & Shipbuilding
- Foundries & Construction
Benefits of Globe MachMovers’ Electric Wire Rope Hoist
Our Electric Wire Rope Hoists offer high lifting efficiency for frequent, high-speed operations, safe and reliable performance with built-in safety brakes and overload protection, customizable designs tailored to your lifting height, speed, and load needs, quiet operation with smooth, low-noise performance, and energy-efficient motors to reduce power consumption and operating costs.
Why Choose Electric Wire Rope Hoists from Globe MachMovers?
- Reputed Electric Wire Rope Hoist manufacturer in India
- Precision-engineered hoists built for long-term reliability
- Full customization with top-grade components
- Competitive pricing and prompt delivery
- Strong after-sales service and technical support across India
Need a powerful and dependable lifting solution for your facility?
Get in touch with Globe MachMovers, your reliable Electric Wire Rope Hoist supplier in India, for expert advice and high-performance hoisting systems.
Elevate your operations with our advanced and dependable solutions.
