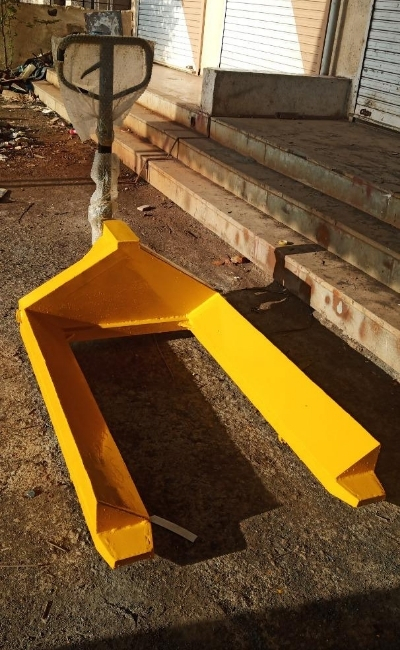

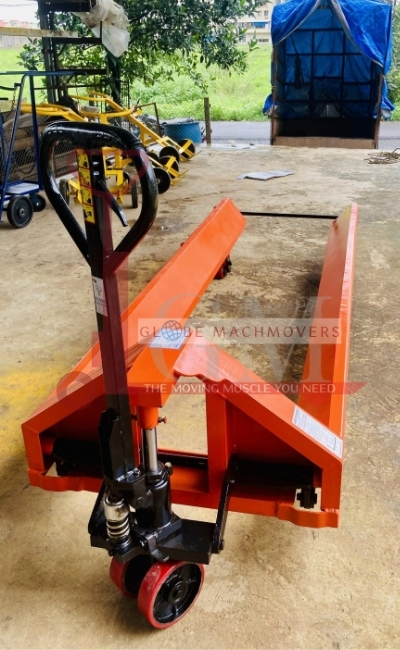

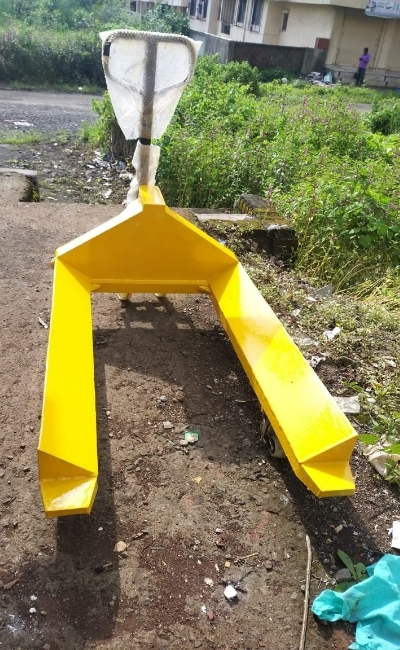

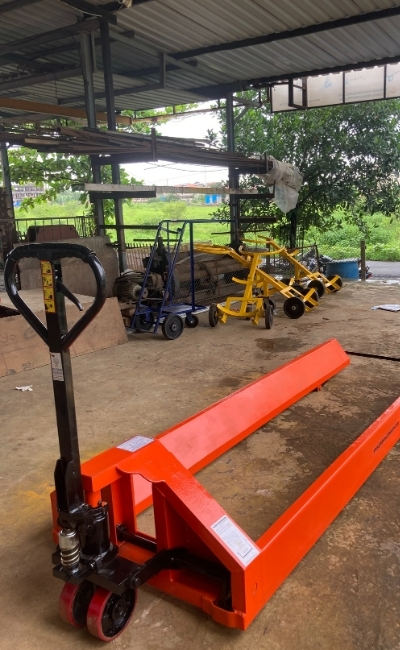

Beam Pallet Truck
Heavy-Duty Long Load Handling | Robust Design | Safe Transport
Globe MachMovers is a trusted Beam Pallet Truck manufacturer in India, offering specialized material handling solutions for transporting long and oversized loads such as steel beams, pipes, timber, and bars. Built with extended forks and reinforced structure, our Beam Pallet Trucks are engineered for heavy-duty performance in demanding industrial environments.
What is a Beam Pallet Truck?
A Beam Pallet Truck is a variant of a standard pallet truck, designed with extra-long fork lengths to support and safely transport long, awkward, or unpalletized items. It is widely used in construction, fabrication, steel, and pipe industries where conventional pallet jacks fall short due to length limitations.
Technical Specifications
| Model Type | Beam Pallet Truck (Manual) |
|---|
| Load Capacity | 1000 kg / 1500 kg / 2000 kg |
|---|
| Beam Length (Adjustable) | 500 mm – 2500 mm (customizable) |
|---|
| Beam Width (Adjustable) | 200 mm – 1000 mm (customizable) |
|---|
| Beam Diameter Supported | Up to Ø800 mm |
|---|
| Lowered Beam Height | 85 mm |
|---|
| Raised Beam Height | 200 mm |
|---|
| Structure Material | Heavy Duty Mild Steel |
|---|
| Wheel Material | PU / Nylon / Rubber (as per application) |
|---|
| Steering Wheel Size | Ø180 mm × 50 mm |
|---|
| Load Roller Size | Ø82 mm × 70 mm |
|---|
| Pump Type | Manual Hydraulic Pump |
|---|
| Fork Type | Adjustable forks with rollers for beam seating |
|---|
| Handle Type | Ergonomic with Rubber Grip |
|---|
| Surface Finish | Powder Coated / Zinc Plated |
|---|
| Weight (Approx.) | 80 kg – 120 kg (depending on model) |
|---|
| Application | Coil, pipe, or beam handling in warehouses/factories |
|---|
Key Features
- Load capacity: 1.5 to 3 tons
- Fork length: Custom options from 1800 mm to 3000 mm
- Rugged MS construction with heavy-duty frame
- Hydraulic lifting mechanism for easy operation
- Ergonomic handle with 3-function control (lift, neutral, lower)
- Large polyurethane/nylon wheels for smooth rolling
- Reinforced fork design for stable support of long loads
- Powder-coated finish for corrosion resistance
Applications
- Handling and movement of beams, pipes, bars, and tubes
- Transporting long fabrication parts in workshops
- Loading/unloading construction materials
- Intra-warehouse movement of structural steel or lumber
- Safe transport of unpalletized, oversized components
Industries We Serve
- Steel & Metal Fabrication
- Construction & Infrastructure
- Pipe & Tube Manufacturing
- Furniture & Woodworking
- Warehousing & Material Handling
- Heavy Engineering & OEM Units
Safe & Efficient Long Load Handling
Our Beam Pallet Trucks offer a stable and secure platform to handle long loads without the risk of tipping or imbalance. Designed to optimize workplace efficiency and safety, they reduce the need for forklifts in tight spaces, helping businesses minimize handling time and maximize floor safety.
Why Choose Beam Pallet Trucks from Globe MachMovers?
- Custom Fork Lengths: Tailored to suit your material handling requirements
- Heavy-Duty Performance: Built for demanding industrial use
- Reliable Hydraulic System: Smooth and controlled lifting
- Low Maintenance: Designed for rugged use and long-term durability
- Nationwide Delivery & Support: Servicing customers across India
Looking for a reliable solution for handling beams and long materials?
Contact Globe MachMovers – your expert Beam Pallet Truck manufacturer and supplier in India.
Enhance your material handling with our robust and specialized solutions.
