Mezzanine Floor
Space-Saving Design | Modular Construction | High Load Capacity
Globe MachMovers is a leading Mezzanine Floor manufacturer in India, offering durable and space-saving multi-tier mezzanine floor systems that help businesses expand their usable workspace without costly civil construction. Our modular mezzanines are ideal for warehouses, factories, logistics hubs, and retail stockrooms, allowing for vertical growth while maintaining operational flow.
What is a Mezzanine Floor?

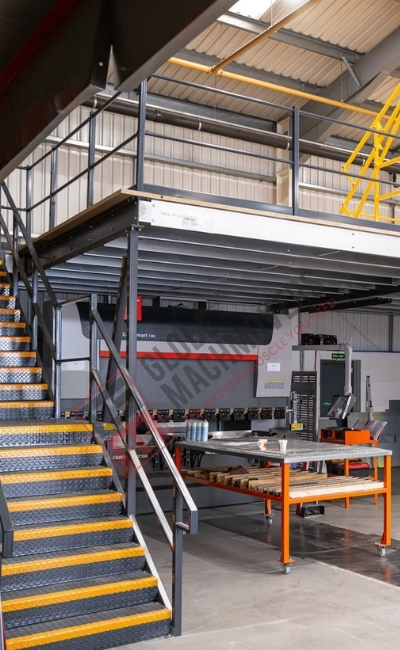

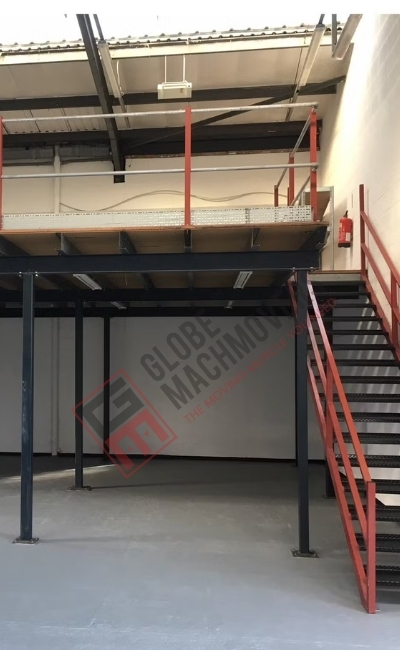

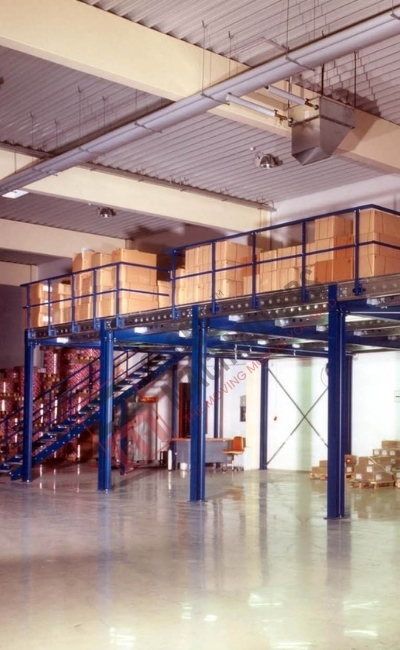

The Multi-Tier Mezzanine Floor System is a self-supported, free-standing steel structure that creates additional levels of floor space above the ground. These systems can be designed with custom heights, load capacities, staircases, safety railings, and material lifts to enhance accessibility and workflow. Whether you need to store goods, build supervisor cabins, or add assembly zones, our mezzanine floors provide a flexible and scalable solution.
Technical Specifications
| Structure Type | Modular / Bolted / Welded |
|---|
| No. of Tiers | 2 to 4 (customizable) |
|---|
| Material | Mild Steel (MS) / High Tensile Structural Steel |
|---|
| Decking Material | MS Chequered Plate / Plywood / Steel Grating / Particle Board |
|---|
| Decking Thickness | 1.6 mm to 3 mm (Steel Plate) / 18 mm to 25 mm (Plywood/Board) |
|---|
| Floor Loading Capacity | 300 kg/m² to 2000 kg/m² (depending on application) |
|---|
| Upright Profile | ISMB / RHS / SHS / C-Channel |
|---|
| Column Spacing | 2500 mm to 6000 mm (customized based on load and design) |
|---|
| Height Between Tiers | 2100 mm to 3000 mm |
|---|
| Staircase | Fabricated MS Staircase with Handrails |
|---|
| Handrails | MS Tubular / Square Pipe with Mid Rails |
|---|
| Finish | Powder Coated / Painted / Galvanized |
|---|
| Color Options | Standard RAL shades available |
|---|
| Access Options | Staircases, Cat Ladders, Lifts |
|---|
| Fire Protection | Fire-resistant materials & compliance (optional) |
|---|
| Compliance | IS Standards / OSHA / ANSI / EN (on demand) |
|---|
| Applications | Warehousing, Logistics, Pharma, Automotive, Retail, Office Space |
|---|
Key Features
- Design Options: Single Tier / Double Tier / Multi-Tier Mezzanine
- Load Capacity: Up to 1,500 kg/m² (customizable)
- Structure Material: High-tensile MS with powder coating or galvanized finish
- Flooring Options: Chequered plate, MS grating, plywood with laminate, or cement board
- Staircase & Safety: Guardrails, access ladders, handrails, and toe plates included
- Modularity: Expandable and relocatable
- Installation: Quick assembly with minimal site disruption
- Compliance: Designed as per IS, OSHA, and BIS safety standards
Applications
- Warehouse and logistics storage
- Assembly lines and production areas
- Packing and sorting zones
- Office cabins or supervisor decks
- E-commerce fulfillment centers
- Retail back-end inventory rooms
Industries We Serve
- Warehousing & Logistics
- E-commerce & Retail
- Automotive & Engineering
- Pharmaceuticals & Healthcare
- Food Processing & Packaging
- Electronics & Consumer Goods
Benefits of Globe MachMovers’ Mezzanine Floors
Our Mezzanine Floors offer increased space without construction to utilize vertical space without expanding your building footprint, a cost-effective solution more affordable than new construction, custom-engineered designs tailored to suit your workflow, floor load, and dimensions, a modular and expandable structure allowing for additional tiers as your needs grow, minimal disruption with fast, non-invasive installation, and a safe and sturdy design engineered for strength and stability.
Why Choose Mezzanine Floors from Globe MachMovers?
- Trusted mezzanine floor system manufacturer in India
- Engineering support for custom layouts and load calculations
- End-to-end service: site visit, design, fabrication, and installation
- Certified structural materials and safety compliance
- Timely delivery and nationwide installation support
Looking to optimize your warehouse or factory space?
Contact Globe MachMovers, your reliable source for Multi-Tier Mezzanine Floors in India, and discover how our innovative space-saving systems can improve your operational efficiency.
Maximize your workspace with our robust and scalable mezzanine solutions.
