Flexible Conveyor Belt
Adaptable Material Handling | Space-Saving Design | Easy Mobility
Globe MachMovers is a trusted Flexible Conveyor Belt manufacturer in India, delivering high-performance, modular, and adjustable conveyor systems that are perfect for loading, unloading, packaging, and assembly operations. Our flexible conveyors are designed to expand, bend, and contract as per the workspace needs, offering maximum mobility and space efficiency in fast-paced environments.
What is a Flexible Conveyor Belt?

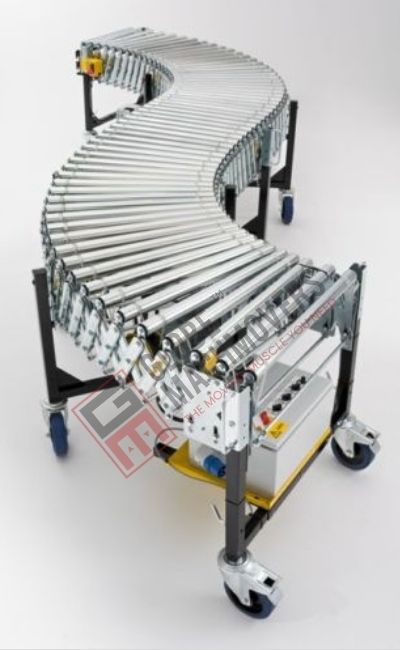

A Flexible Conveyor Belt is an extendable and collapsible material handling system made with a series of roller or skate wheels mounted on adjustable legs with lockable casters. It allows the conveyor to expand in length, curve in shape, and retract for easy storage. Available in gravity or motorized (powered) versions, it ensures fast setup, flexible routing, and efficient product flow in dynamic industrial setups.
Technical Specifications
| Conveyor Type | Flexible / Expandable Conveyor (Gravity / Powered) |
|---|
| Frame Material | Heavy-duty MS Powder Coated / Stainless Steel / Aluminium |
|---|
| Roller Type | Galvanized Steel / PVC / Plastic |
|---|
| Roller Diameter | 38 mm to 50 mm |
|---|
| Roller Pitch | 75 mm to 150 mm |
|---|
| Roller Width | 400 mm to 1000 mm |
|---|
| Expanded Length | 2 meters to 12 meters (customizable) |
|---|
| Compacted Length | Approx. 1/3 of extended length |
|---|
| Conveyor Height | Adjustable (Typically 700 mm to 1000 mm) |
|---|
| Load Capacity | 30 kg/m to 80 kg/m (depending on model and roller material) |
|---|
| Mobility | Swivel Castor Wheels with Locking |
|---|
| Incline/Decline Use | Mild Incline Supported (up to 5°) |
|---|
| Conveyor Speed | Gravity Type: Manual / Powered: 10 – 30 m/min (VFD optional) |
|---|
| Drive Type (Optional) | Powered with Motorized Roller or Belt Drive |
|---|
| Expansion Mechanism | Scissor or Accordion Type Cross Members |
|---|
| Belt Type (Optional) | PU / PVC (for belt version, not roller-based) |
|---|
Key Features
- Type: Gravity Flexible Conveyor / Powered Flexible Conveyor
- Roller Material: Zinc-plated steel / PVC / Stainless Steel / PU
- Frame: Heavy-duty MS with powder coating or SS for hygiene-sensitive environments
- Adjustable Length: Expandable from 2 meters up to 10+ meters
- Flexible Design: Curves and bends as needed to fit layout
- Leg Height: Adjustable for slope or ergonomic alignment
- Mobility: Swivel caster wheels with brakes for easy relocation
- Load Capacity: Up to 80–100 kg/meter
- Optional Add-ons: Side rails, stop plates, sensors, and start-stop controls
Applications
- Loading/unloading at warehouse docks
- Parcel and package movement in courier facilities
- Carton handling in assembly and dispatch lines
- Material transport between workstations
- Temporary lines during peak operations or seasonal surge
Industries We Serve
- E-Commerce & 3PL Warehousing
- Logistics & Courier Companies
- FMCG & Packaging
- Retail Distribution Centers
- Automotive Spare Parts Warehouses
- Food Processing & Pharmaceuticals (with SS options)
Benefits of Globe MachMovers’ Flexible Conveyor Belt
Our Flexible Conveyor Belts offer a space-saving design that retracts and folds for compact storage, adaptable routing that adjusts to layout constraints and irregular paths, quick deployment ideal for temporary or mobile setups, labor-saving features that reduce manual handling time and effort, and high portability for easy movement between different zones or locations.
Why Choose Flexible Conveyor Belts from Globe MachMovers?
- Recognized Flexible Conveyor Belt manufacturer in India
- Built for durability, smooth performance, and long life
- Customizable sizes and roller materials to suit your products
- Complete after-sales support, training, and maintenance
- Pan-India delivery and responsive customer service
Looking for a conveyor that adjusts to your workflow?
Get in touch with Globe MachMovers, your reliable Flexible Conveyor Belt supplier in India, and revolutionize your internal logistics with a smart, mobile conveyor solution.
Optimize your operations with our versatile and efficient flexible conveyors.
